Code: 0914 020 3001

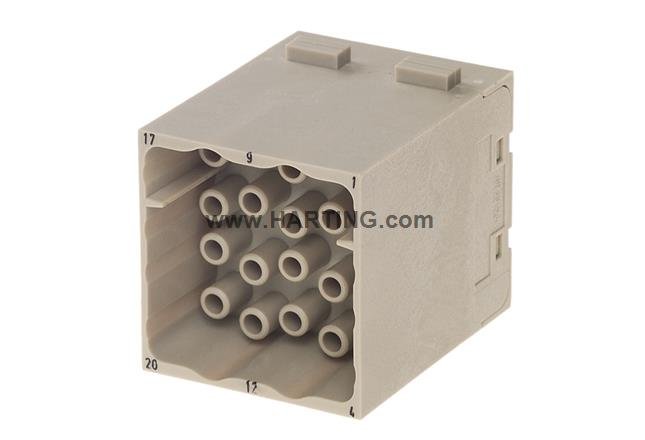

Harting HanEEE Module 20 way Male Crimp Terminal (Current Rating 500V 16A)
From €10.37 ex VAT
In Stock
QtyAdd to Cart
| Quantity Breaks (per unit) | |
|---|---|
| 1 to 1 | €13.03 |
| 2 to 10 | €13.03 |
| 11 to 9999998 | €11.17 |
| 9999999 + | €10.37 |
Identification
Category Modules
Series Han-Modular®
Type of module Han® EEE module
Size of the module Double module
Version
Termination method Crimp termination
Gender Male
Number of contacts 20
Details Please order crimp contacts separately.
Technical characteristics
Conductor cross-section 0.14 ... 4 mm²
Rated current 16 A
Rated voltage 500 V
Rated impulse voltage 6 kV
Pollution degree 3
Rated voltage acc. to UL 600 V
Insulation resistance >1010 Ω
Limiting temperature -40 ... +125 °C
Mating cycles ≥ 500
Mating cycles with other HMC components ≥ 10,000
Material properties
Material (insert) Polycarbonate (PC)
Colour (insert) RAL 7032 (pebble grey)
Material flammability class acc. to UL 94 V-0
RoHS compliant
ELV status compliant
China RoHS e
REACH Annex XVII substances Not contained
REACH ANNEX XIV substances Not contained
REACH SVHC substances Not contained
California Proposition 65 substances Not contained
Fire protection on railway vehicles EN 45545-2 (2020-08)
Requirement set with Hazard Levels R22 (HL 1-3) R23 (HL 1-3)
Specifications and approvals
Specifications
IEC 60664-1
IEC 61984
Approvals
DNV GL
UL / CSA
UL 1977 ECBT2.E235076
