Code: 09 10 012 3100

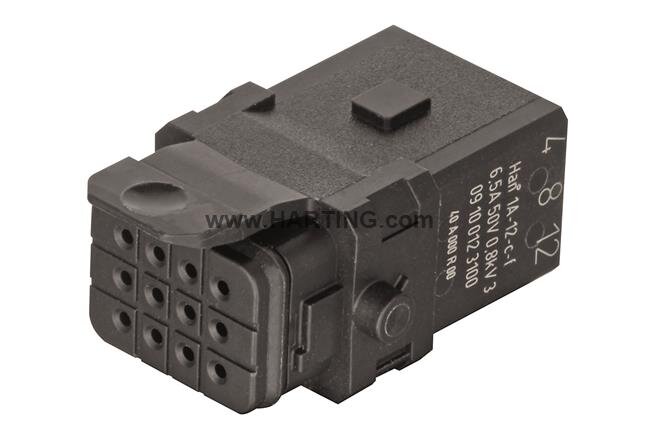

12 Crimp Female with snap-in latch Crimp type for 0.09 to 0.52mm wire
Price on Application
12 Crimp Female with snap-in latch Crimp type for 0.09 to 0.52mm wire
Identification
Category Inserts
Series Han® 1A
Version
Termination method Crimp termination
Gender Female
Size 1 A
Number of contacts 12
Locking type Snap-in latches
Details Please order crimp contacts separately.
Order separately the single wire seal or the hoods/housings for an IP65 performance.
Details A Han®
1A configuration that only consists of inserts (with or without strain relief, 09 10 000 5300) is an unenclosed connector. In this case protection against electric shock must be provided by the installation methods of the user. Contact inserts must not be coupled or decoupled under electrical load. Contact inserts must not be powered-up in the un-mated condition.
Technical characteristics
Conductor cross-section .09 ... 0.52 mm²
Rated current 6.5 A
Rated voltage 50 V
Rated impulse voltage 0.8 kV
Pollution degree 3
Insulation resistance >108 Ω
Limiting temperature -30 ... +90 °C
Mating cycles ≥ 100
Degree of protection acc. to IEC 60529
Material properties
Material (insert) Polyamide (PA)
Colour (insert) RAL 9005 (jet black)
Material (seal) NBR
Colour (seal) Black
Material flammability class acc. to UL 94 V-0
RoHS compliant
ELV status compliant
China RoHS e
REACH Annex XVII substances Not contained
REACH ANNEX XIV substances Not contained
REACH SVHC substances Not contained
Fire protection on railway vehicles EN 45545-2 (2020-08)
Requirement set with Hazard Levels R22 (HL 1-3) R23 (HL 1-3)
Specifications and approvals
Specifications EN 45545-2 R22: HL1, HL2, HL3
EN 45545-2 R23: HL1, HL2, HL3 EN 45545-2 R24: HL1, HL2, HL3
IEC 61373 Category 1 Class B EN 60664-1
Approvals DNV GL
Category Inserts
Series Han® 1A
Version
Termination method Crimp termination
Gender Female
Size 1 A
Number of contacts 12
Locking type Snap-in latches
Details Please order crimp contacts separately.
Order separately the single wire seal or the hoods/housings for an IP65 performance.
Details A Han®
1A configuration that only consists of inserts (with or without strain relief, 09 10 000 5300) is an unenclosed connector. In this case protection against electric shock must be provided by the installation methods of the user. Contact inserts must not be coupled or decoupled under electrical load. Contact inserts must not be powered-up in the un-mated condition.
Technical characteristics
Conductor cross-section .09 ... 0.52 mm²
Rated current 6.5 A
Rated voltage 50 V
Rated impulse voltage 0.8 kV
Pollution degree 3
Insulation resistance >108 Ω
Limiting temperature -30 ... +90 °C
Mating cycles ≥ 100
Degree of protection acc. to IEC 60529
Material properties
Material (insert) Polyamide (PA)
Colour (insert) RAL 9005 (jet black)
Material (seal) NBR
Colour (seal) Black
Material flammability class acc. to UL 94 V-0
RoHS compliant
ELV status compliant
China RoHS e
REACH Annex XVII substances Not contained
REACH ANNEX XIV substances Not contained
REACH SVHC substances Not contained
Fire protection on railway vehicles EN 45545-2 (2020-08)
Requirement set with Hazard Levels R22 (HL 1-3) R23 (HL 1-3)
Specifications and approvals
Specifications EN 45545-2 R22: HL1, HL2, HL3
EN 45545-2 R23: HL1, HL2, HL3 EN 45545-2 R24: HL1, HL2, HL3
IEC 61373 Category 1 Class B EN 60664-1
Approvals DNV GL
