Code: BT4S-M0
Shop Panduit BT4S-M0 nylon cable ties for effective wire management. High tensile strength and UV resistance for long-lasting performance in harsh conditions.
Price on Application

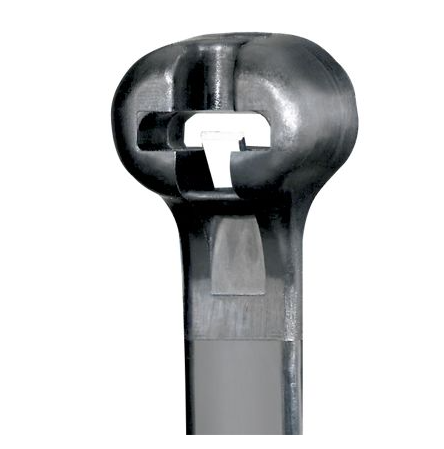

Panduit | BT4S-M0 | Dome-top Barb Ty | 384mm x 4.7mm
Specification
- Product Type Cable Tie
- Sub Brand Dome-Top®
- Color Black
- Environment Indoor/Outdoor
- Material Nylon 6.6
- Resistance Properties UV-Resistant, Weather-Resistant
- Overall Length (In.) 15.1
- Overall Length (mm) 384
- Body Width (In.) 0.185
- Body Width (mm) 4.7
- Body Thickness (In.) 0.052
- Body Thickness (mm) 1.3
- Maximum Bundle Diameter (In.) 4
- Maximum Bundle Diameter (mm) 102
- Minimum Bundle Diameter (In.) 0.06
- Minimum Bundle Diameter (mm) 1.5
- Minimum Loop Tensile Strength (N) 222
- Minimum Loop Tensile Strength (lb) 50
- Maximum Operating Temperature (°C) 85
- Maximum Operating Temperature (°F) 185
- Minimum Operating Temperature (°C) -60
- Minimum Operating Temperature (°F) -76
- Minimum Installation Temperature (°C) -20
- Minimum Installation Temperature (°F) -4
- Standards Met UL 62275 (File E56854), CSA-C22.2 No. 62275 (File 31212), Cert 05968/C0, BV File ACE 14/601/01 Product Code: 2535H, 89/60111 (E3), 11130200, QPL-AS23190, RoHS Compliant
- For Use With GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH, PPTS, STS2, STH2
