Introducing high-quality quartz crystals designed for a wide frequency range of 12.0 to 66.0 MHz, suitable for various applications with frequency tolerances of ±10 ppm and ±30 ppm at 25°C. These crystals come with standard load capacitance options of 8, 10, and 12 pF, and offer customization from 6 pF to 30 pF. Featuring exceptionally low shunt capacitance under 3 pF, they are optimized for high performance across a storage temperature range of -40°C to +90°C. With a maximum drive level of 100 μW, and a recommended 10 μW for prolonged life, these crystals ensure reliability with less than ±3 ppm aging in the first year, and an option for an even lower aging rate of less than ±1 ppm for the most demanding ±10 ppm tolerance requirements
Jauch | JXS22 (2520) | SMD Seam Seal Quartz Crystal 2.5x2.0x0.5

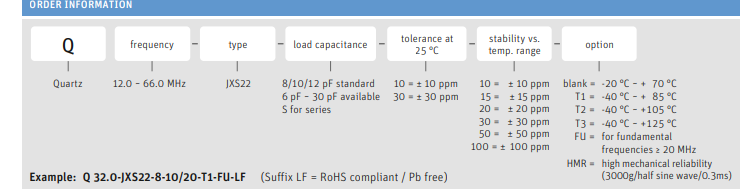

Features
- 4 Pad Version, 2.5 x 2.0 mm
- Seam sealed ceramic/metal package
- Extended temperature ranges available
- High mechanical reliability type available
- For automotive type, see automotive datasheet
- Frequency range 12.0 ~ 66.0 MHz (fund. AT-cut)
- Frequency tolerance at 25 °C ± 10 ppm / ± 30 ppm
- Load capacitance CL 8/10/12 pF standard
- (Option: 6 pF ~ 30 pF / series)
- Shunt capacitance CO < 3 pF
- Storage temperature -40 °C ~ +90 °C
- Drive level max. 100 μW (10 μW recommended)
- Aging < ± 3 ppm first year
- (Option: < ± 1 ppm first year for tol. ± 10 ppm)
